Onstar Vision

HEALTH & PARTICLE

DETECTION

x-ray, thermal imaging, magnetic • screening & sensing equipment

• Factories & Office Buildings
• Food Processing Plants
• Hotels, Casinos, & Shopping Malls
• Public Transportation Queues
• Hospitals, Schools & Churches
• Airports & Government Buildings
• Theaters & Event Centers
• Restaurants, Bars, & Special Events

vision logo

ONSTAR VISION™

Walk-Through Metal Detector

SafePass SP-MD-1 / SafePass SP-MD-2

The SafePass SP-MD-1 provides a fixed 8 Zone metal detection capability for a maximum security tool. Eight horizontal
detection zones function independently, penetrating layers of
interference to accurately identify any metals concealed on the
body. When a target item is carried or tossed through the archway, the system’s advanced signal processing diagnostics are
instantly triggered. A convenient graphic LED display provides
security staff on the scene with a visual alarm showing the exact
height of the target object from ground level for faster retrieval.

The SafePass SP-MD-2 design anticipates your most essential concerns. Programmable discrimination modes allow you to adjust zone sensitivity to detect specific metals or alloys, and eliminate loss prevention at floor level. And data storage is never an issue for this streamlined unit, which retains memory even when powered off. The SafePass SP-MD-2 which allows for 1,8,16, and 24 Zone metal detection is the definition of smart design and a top choice across government, industrial and commercial industries

• Advanced continuous wave technology
• 8 horizontal detection zones zero in on targets
• Flexible zone sensitivity offers thorough detection
• Intelligent discrimination capabilities
• Superior signal processing reduces false alarms
• Pre-programmed “All Metal” mode
• Convenient high security factory presets
• Programmable presets for tailored security
• 180 degree viewing LED panel display
• Stop & Go lights for speedy pacing (OPTIONAL)
• Dual alarm for audible and visual alert
• Non-volatile memory stores data when unit is off
• Highly effective against interference
• Incorporates 6-digit security pass code
• Safe for pacemakers and pregnant women
• Multiple Zones - 8, 16, and 24 Zones
• Body Temperature function (SP-MD-2 ONLY)

man
Zone Graphic

Thermal Imaging Camera / Body Temperature ( SP-MD-2 ONLY )

Wrist Sensor / Infrared Body Temperature Detection ( optional )

man

OPTIONAL SENSORS PROTECT STAFF & CUSTOMERS:

Take every precaution possible with the latest technology insensors that give an accurate readout of peoples body temperature in real-time.

vision logo

ONSTAR VISION™

Baggage Scanner - (small capacity)

SafeBag - SB-505-307 (Aperature / Opening - 505mm x 307mm)

ONSTAR VISION™

Baggage Scanner - (medium capacity | not pictured)

SafeBag - SB-810-660 (Aperature / Opening - 810mm x 660mm)

The SafeBag - SB-505-307 is a complete solution
for security inspection of carry-on baggage or
parcels, and other small to medium sized items
before entering business buildings, government
institutions, shopping malls, theaters and special
events or travel queues of every kind

Baggage Scanner small capacity

Image Enhancement Features Include: Color + Black &
White images, organic and inorganic elimination, alterable absorption, super-enhancement, negative mode,
high/low energy penetrability, pseudo color.

SYSTEM FUNCTIONS:

TIP (Threat Image Projection), hazardous area alarm, high density alarm, date / time display, baggage counter, user management, system timing, ray beam timing, power on self-test,
image back-up and search, maintenance and diagnosis, bi-directional scanning.

OPTIONAL FUNCTIONS:

Video monitor system / LED (liquid crystal display) energy-conservation & environmental-protection equipment / electronic
weighing system / speaker.

ONSTAR VISION™

Baggage Scanner - (large capacity)

SafeBag - SB-1018-810 (Aperature / Opening - 1018mm x 810mm)

The SafeBag - SB-1018-810 is an ideal security
inspection system to confirm the safety of large size
baggage and parcels in railway stations, bus stands,
airports, and for larger items of most any kind.

Baggage Scanner

• Duel View Design
• Compact Design
• High Density Alarm
• Cost Effective
• Extremely High Resolution
• Multi-language Support
• Dual-energy Material Discrimination
• Assist to Detect Drug & Explosive Powder
• GPU - Accelerated Image Processing

vision logo

HANDHELD DETECTION

Durable engineering plastic build • Low voltage continuous alarm & light indication

ONSTAR VISION™

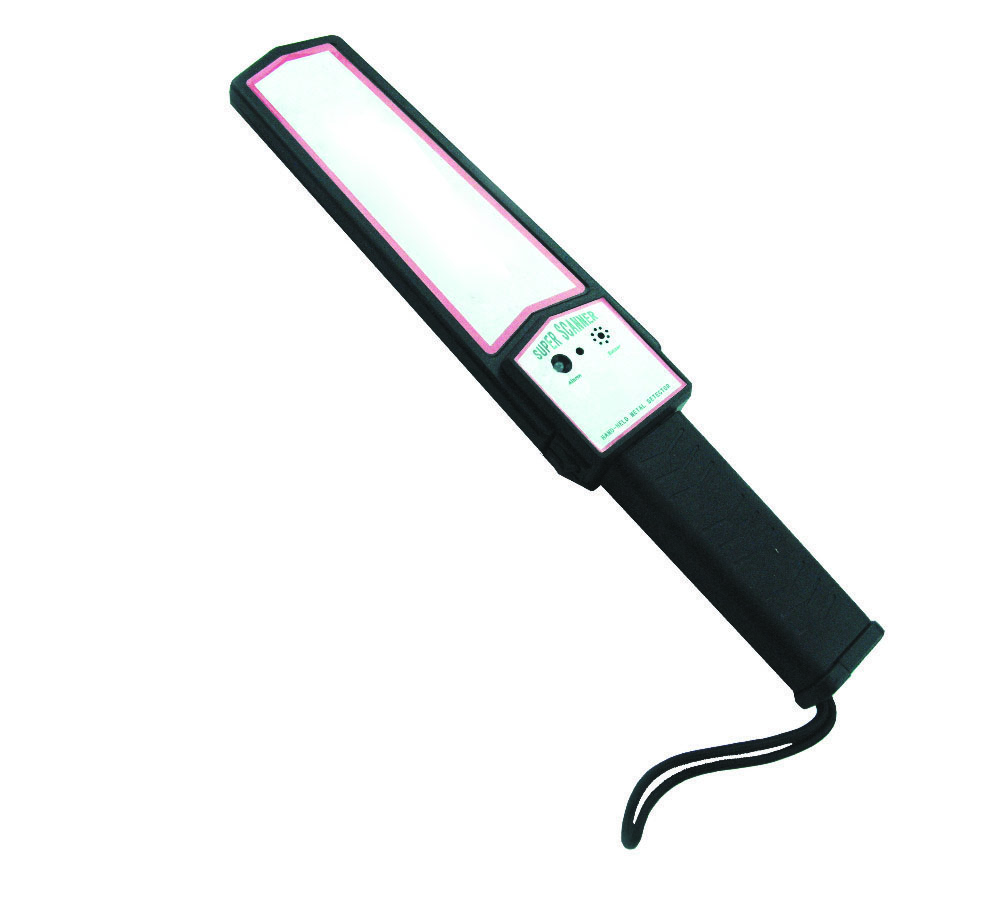

Handheld Metal Detector
SafeScan - SS-1-350

• Sensitivity Level: high and low, two options
• Alarm Method: single buzzer and vibration
• Battery Type: 9V alkaline battery or rechargeable nickel-hydrogen battery
• Working Hours: under the condition of 10% alarm, alkaline battery 40 hours, re chargeable nickel-hydrogen battery 14 hours
• Working Frequency: 25KHZ
• Size: 410mm x 83mm x 44mm
• Weight: 350g
• Detecting Accuracy: pin 30-60mm, 64-type pistol 150mm, 6”dagger 160mm,Ф20mm steel ball 90mm

SS-1-350

ONSTAR VISION™
Handheld Metal Detector
SafeScan - SS-2-248

• Alarm Method: single buzzer and vibration
• Sensitivity Level: high and low, two options
• Battery Type: 9V alkaline battery or rechargeable nickel-hydrogen battery
• Working Hours: under the 10% alarm, alkaline battery 40 hours , rechargeable nickel-hydrogen battery 14 hours
• Working Frequency: 25KHZ
• Size:400mm x 79mm x 30mm
• Weight:248g
• Detecting Accuracy: pin 30-60mm, 64-type pistol 150mm, 6” dagger 160mm,Ф20mm steel ball 90mm

SS-2-248
vision logo

Ensure the health and safety of your staff & customers by protecting your entry points!
