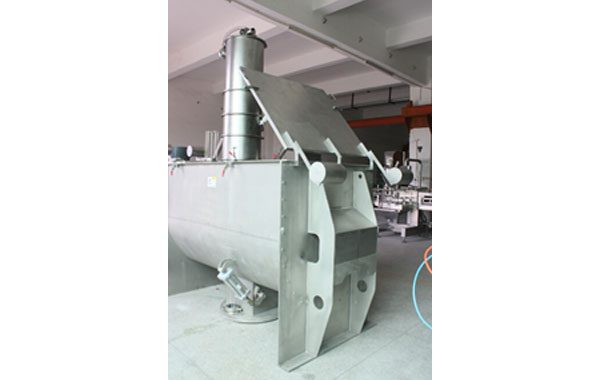

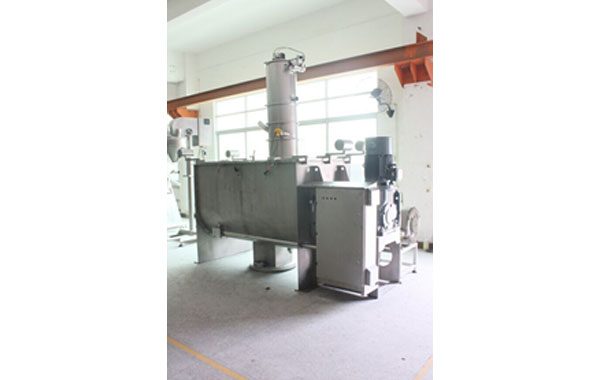

  • WELL BUILT MACHINERY WBM-HDR

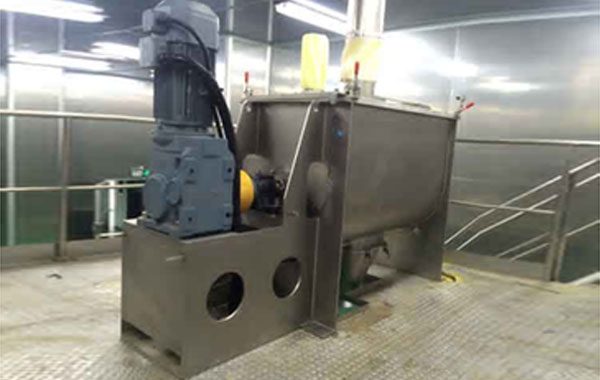

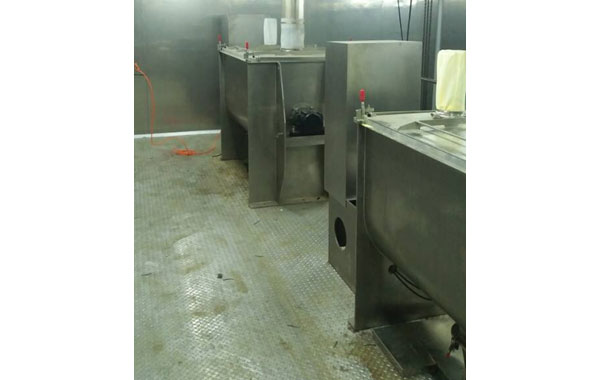

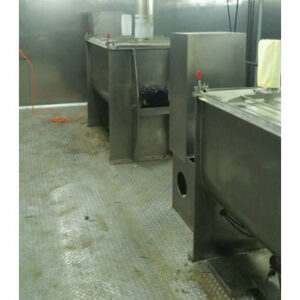

    WELL BUILT MACHINERY WBM-HDR

    It is suitable for mixing heavy thick foods orpowders with the addition of liquids. This power house can mix viscous materials that turn into Putty like compounds.
    ◇It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to fragile materials.
    ◇The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and drive unit.

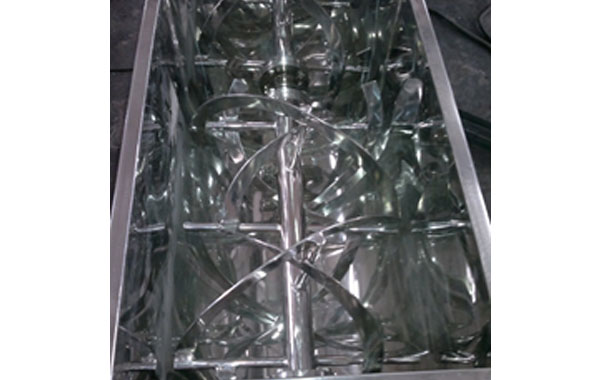

    ◇Double ribbon mixer drive the material from two ends to center through the help of the outer ribbon, while the inner ribbon push the material from center to two ends, thus, material achieve a high mixing effect in a short amount of time.
    ◇Your Well-Built Machinery ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We can add spraying or atomizing unit inside the tank for easy incorporation of fine liquids.

    Read more
    Quick View

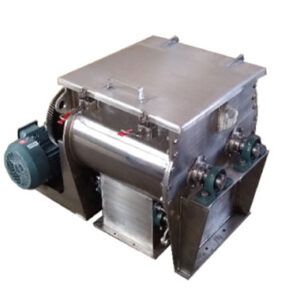

  • Well-Built-Machinery-WBM-DSPMIX

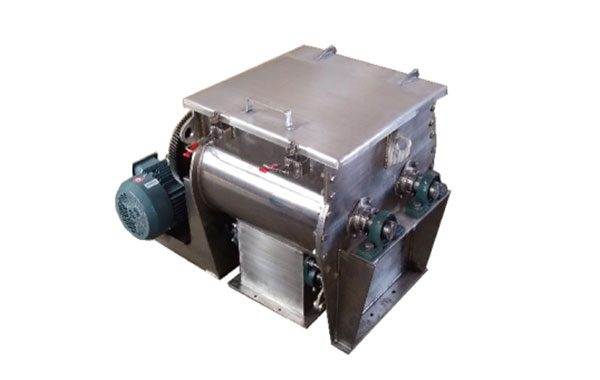

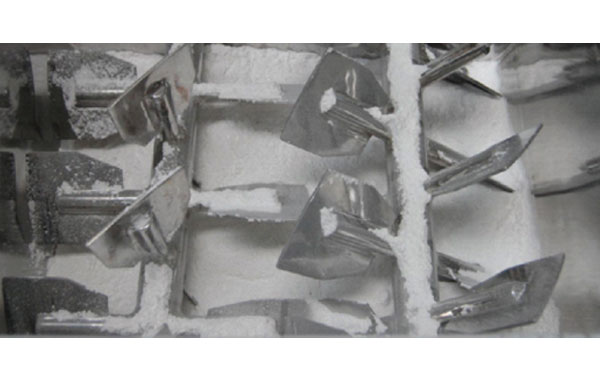

    Well-Built-Machinery-WBM-DSPMIX

    Features:

    • High mixing speed with uniformity greatfor formulations containing micro ingredients. Batch mixing time cut in half.
    • When mixing,won’t produce segregation phenomenon,with no dead angle and no deposit
    • The mixing deviation is less than 8%
    • With fast feeding speed and good sealed performance
    • Cover a small area, low height size,convenient to clean
    Read more
    Quick View

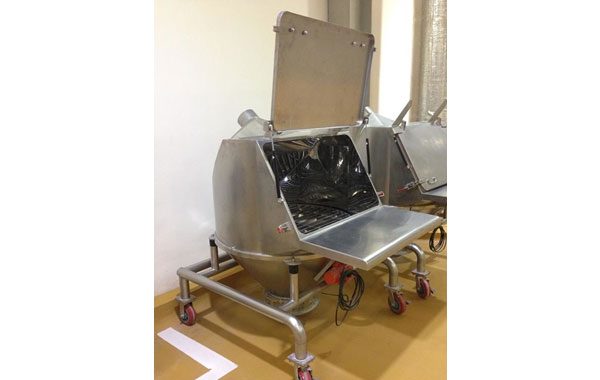

  • WBM-PBS-Bag-Dump-Station

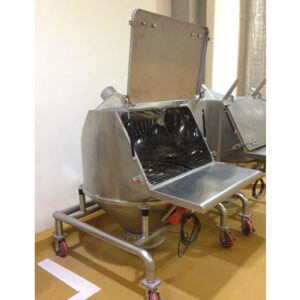

    WBM-PBS-Bag-Dump-Station

    Application

    • ◇Widely apply in food, pharmaceutical, forage and chemical industries,etc.
      ◇Suitable for powder and small grain set-quantity packaging, such as milk powder, Spices, Agriculture products, forage, plastic particles and various chemical raw materials ,etc.

    Optional Parts
    Dust Collector

    Dump Station
    Technical Parameter:

    • Model No：WBM-PBS-900mm
    • Material：SUS304
    • Discharge Diameter: by order
    • Width：900mm

    Model No:            WBM-PBS1120mm

    Read more
    Quick View

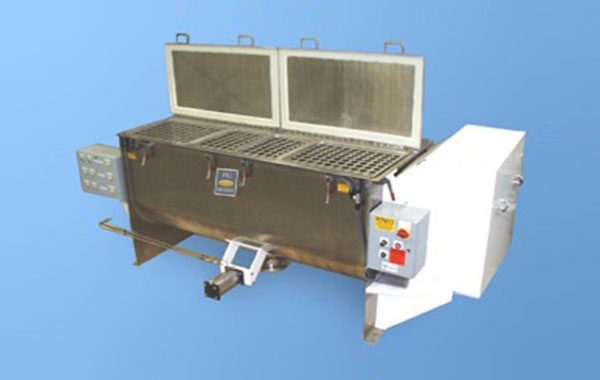

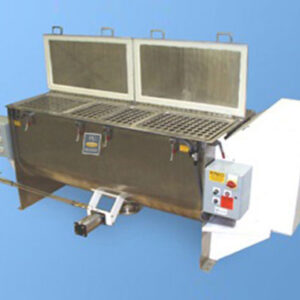

  • WBM-PMIX4000L-Horizontal-Paddle-Mixer

    WBM-PMIX4000L-Horizontal-Paddle-Mixer

    1) Total volume: 4000L
    2) loading capacity: 60-70%
    3) Production capacity: ~1361kg(3000pounds )/ times
    4) Mixing Power: 30KW-6P motor (460v,3 phase)
    5) Helical gear reducer
    6) Cylinder:U shape structure, Cylinder size:L*W*H=2600*1200*1500mm (~102.4”x47.2”x59”), thickness is 8mm(~0.32”), Set up 2 groups of active cover (Manual open), inside the solid protective grid (Round stainless steel)，cylinder wall thickness of 8mm (~0.32”)

    Read more
    Quick View

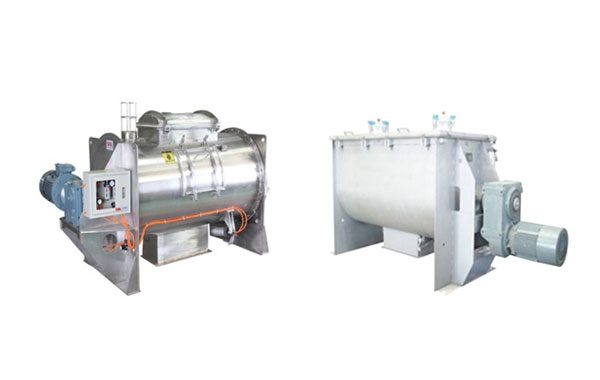

  • Well-Built-Machinery-Ribbon-Blenders

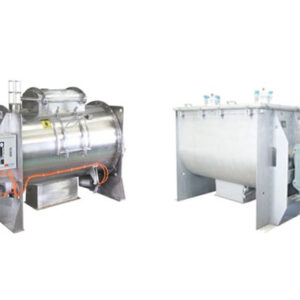

    Well-Built-Machinery-Ribbon-Blenders
