Case Erecting Tapers and Palletizers

  • Home
  • Case Erecting Tapers and Palletizers
  • WBM-5500 PSW

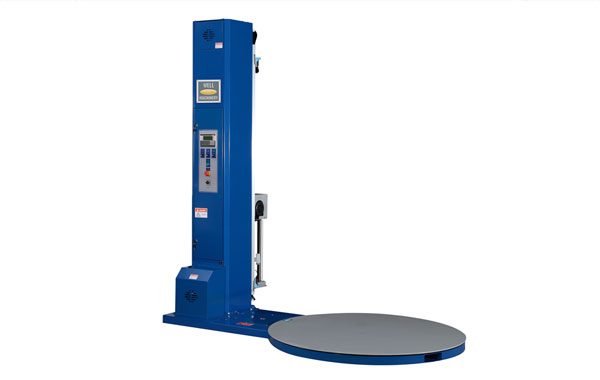

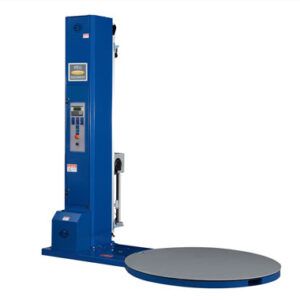

    WBM-5500 PSW

    Control system: PLC
    Automatic height detecting Turntable diameter:1500mm
    Packing height:2100mm
    Loading capacity:1500kg
    Pre-stretch rate:250%
    Max film reel inner diameter:75mm
    Max film feel outer diameter:250mm
    Turntable height:80mm
    Power:220v 50hz 1phase
    Top pallet wrapping rounds from 1-10
    Bottom pallet wrapping rounds from 1-10
    Turntable speed:1-10 cycles/Minute

    Read more
    Quick View
  • WBM-5800 PSW

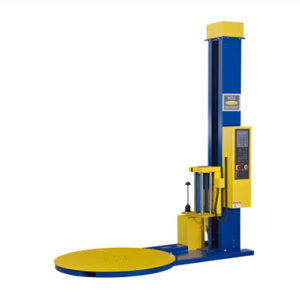

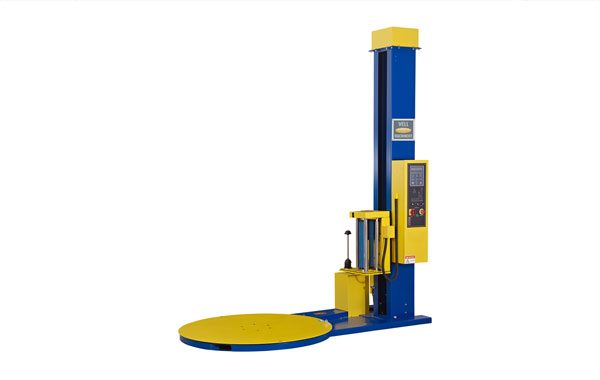

    WBM-5800 PSW

    Control system: PCB
    Automatic height detecting Turntable diameter:1500mm
    Packing height:2100mm
    Loading capacity:2000kg
    Pre-stretch rate:300%
    Max film reel inner diameter:75mm
    Max film feel outer diameter:250mm
    Turntable height:80mm
    Power:220v 50hz 1phase

    Read more
    Quick View
  • WBM-Robot SW

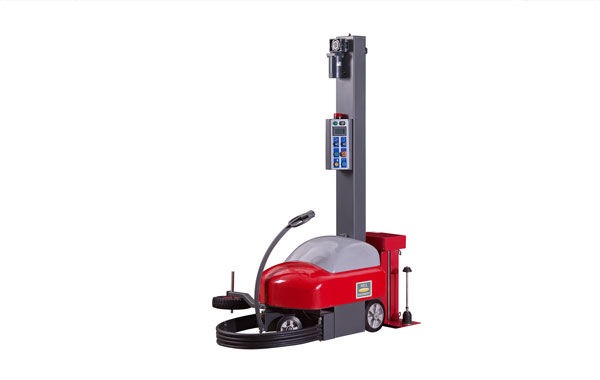

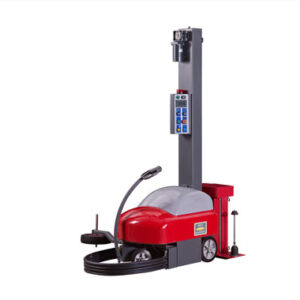

    WBM-Robot SW

    Control System:Programmable
    Min pallet size:600 x 600mm
    Max pallet height:2100mm
    Film reel inside diameter:75mm
    Film reel outside diameter:250mm
    Film-rack lift motor:0.18kw
    Power supply:220V 50HZ 1Phase /380V 50HZ 3Phase
    Machine weight :325kg

    Read more
    Quick View
