Application profile
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal(Fe), non-ferrous metals (Copper, Aluminum etc.) and stainless steel
Features:
1.Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability, without products suppression function and machine aging caused by time and temperature
2.Fast learn product character automatically and finish Auto-setting process
3.Automatic rewind function, dispense with handing large products.
4.52 products can be restored in database
5.LCD, Chinese-English menu, easy operation
6, Dust and water proof, easy to be cleaned
Description
Technical Specifications
| MODEL | 400-180 | Detector
length |
1500mm | ||
| Detection Width | 400mm | ||||
| Detection Height | 180mm | ||||
| Sensitivity | Fe | Φ0.8mm | |||
| SUS304 | Φ1.5mm | ||||
| Belt Width | 360mm | ||||
| Loading Capacity | 5kg~10kg | ||||
| Power Supply | AC220V(Optional) | ||||
| Product Storage Quantity | 52kinds | ||||
Note:
1.The technical parameter above namely is the result of sensitivity by detecting by only the test sample on the belt. The concrete sensitivity would be affected per the products being detected, working condition and the different positions the metal mixed with.
2.Requirements for different sizes by customized can be fulfilled
3. Food Production plants should order the eject locking bin.
Related products
-
WBM-CW-500 Check WeigherRead more
WBM-CW-500 Check Weigher
It is used to check the big weight and volume products. Especially for checking the shortage of packing bottles, box, tablet, bags and cans etc.
Main Features:
- Producing Data Sorting Function: Producing data can be saved as Excel, 1 year data save.
- Interface Design: Foreseen interface makes data management easier, can be connect with Internet and PC.
- Centralized Control: One PC or one HMI control multiple check weigher.
- Original program can be restored.
Quick View -
WBM-GF200-W_REJ Gravity Fall Metal DetectorRead more
WBM-GF200-W_REJ Gravity Fall Metal Detector
Application profile
The first digital gravity fall metal detector in china, suitable for powder, granule or other forms of products.Features:
- Compact design, small occupied space.
- Rapid rejecting mechanism, to reduce the waste of the materials.
- In line with the GMP requirements, easy to install and clean.
- Circuit design is more stable than traditional analog machine and a higher sensitivity.
- Special design of the mechanical structure, to effectively avoid the external interference like vibration, noise, product effect, etc.
Quick View -
WBM-GF75-W_REJ Gravity Fall Metal DetectorRead more

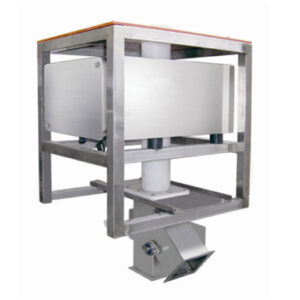

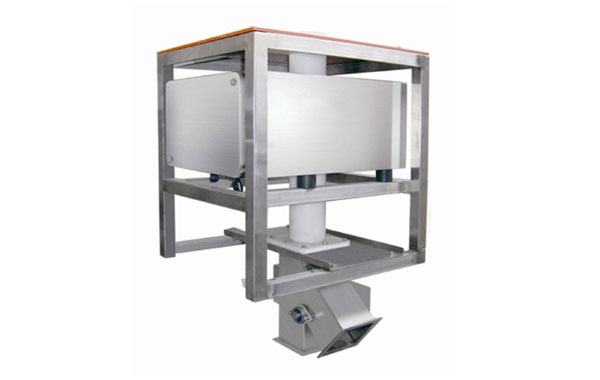

WBM-GF75-W_REJ Gravity Fall Metal Detector
