Application profile
A full-range inspection of contaminants including metal, non-metal(glass, ceramic, stone, bone, hard rubber, hard plastic, etc). It can inspect the metallic packing products such as the aluminum foil packing and canned product. It will also not be affected by the changes of temperature humidity, and the influence of the salt content.
Description
Features:
- Up to eight grade image processing technology to achieve the best product adaptability and stability.
- Shielding function.
- Spare parts are well-known imported brands to ensure the performance and service life of the machine.
- 15-inch touch screen display, easy to operate.
- Auto-setting function.
- Automatically save the product images, which is convenient for users analysis and tracking.
- X-ray leakage meets FDA and CE standards
- Perfect safe operation monitoring to prevent the leakage from mis-operation.
- Simple to disassemble, easy to clean and reliable security.
- Equipped with industrial air condition.
- Completely sealed structure to avoid dust.
- Environmental humidity can reach 90%.
- Environmental temperature can reach -10℃~40℃.
Technical Specifications
MODEL | WBM-400-160 |
X-ray Tube | MAX. 80KV, 210W |
Inspection Width | 400mm |
Inspection Height | 160mm |
Best Inspection Ability | SUS Ball Φ0.3mm, SUS Wire Φ 0.2*2mm |
Conveyor Speed | 10~70m/min |
Display Screen | Full-color TFT 15" Touch Screen |
Connectivity | LAN Port, USB Port |
Power Supply | AC220V(Optional) |
Main Material | SUS304 |
Note:
The technical parameter above namely is the result of sensivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected.
Related products
-
WBM-240-110 X-ray Inspection System
WBM-240-110 X-ray Inspection System
Application profile
A full-range inspection of contaminants including metal, non-metal(glass, ceramic, stone, bone, hard rubber, hard plastic, etc). It can inspect the metallic packing products such as aluminum foil packing and canned product. It will also not be affected by the changes of temperature humidity, and the influence of the salt content.Quick View -
WBM-CW-1000F8
WBM-CW-1000F8
It is used to check and weight classifier of the seafood, poultry, aquatic products and agriculture products. Especially for checking different types and sizes of shrimp and poultry pieces.
Main Features:
- Data Sorting Function: Data can be saved as Excel file for1 year;
- Interface design: Foreseen interface makes data management easy, connected with Internet or PC;
- Centralize Control: PC or HMI control multiple check weigher.
- Original program can be restored.
Quick View -
WBM-CW-500 Check Weigher
WBM-CW-500 Check Weigher
It is used to check the big weight and volume products. Especially for checking the shortage of packing bottles, box, tablet, bags and cans etc.
Main Features:
- Producing Data Sorting Function: Producing data can be saved as Excel, 1 year data save.
- Interface Design: Foreseen interface makes data management easier, can be connect with Internet and PC.
- Centralized Control: One PC or one HMI control multiple check weigher.
- Original program can be restored.
Quick View -

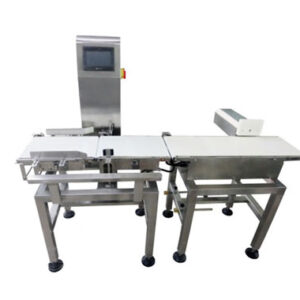

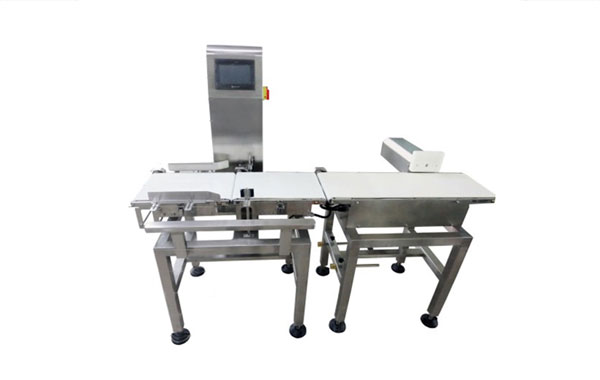

WBM-CW-210
