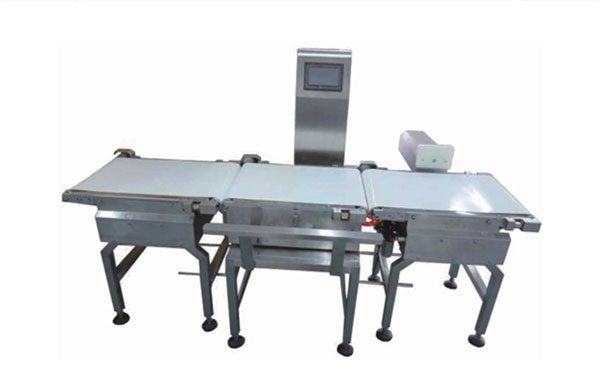

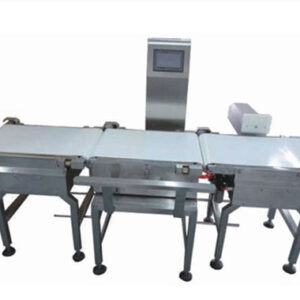

It is used to check and weight classifier of the seafood, poultry, aquatic products and agriculture products. Especially for checking different types and sizes of shrimp and poultry pieces.
Main Features:
- Data Sorting Function: Data can be saved as Excel file for1 year;
- Interface design: Foreseen interface makes data management easy, connected with Internet or PC;
- Centralize Control: PC or HMI control multiple check weigher.
- Original program can be restored.
Description
Special Features:
- Standard machine structure and HMI program design can suitable for wide range products;
- Waterproof design of IP65 Protection Grade, 316#SS available for anti-corrosion of sea salty water;
- High efficiency and labor cost saving with automatic various sorting grade;
- Various preset program, easy to change to fit different product;
- Easy panel operation with smart and humanization HMI interface;
- Speed adjustable by variable frequency motor;
- High speed and accuracy, by equipped with high accuracy digital load cell;
- Customized machine acceptable;
- Zero tracking; Zero by manual or automatic, dynamic zero tracking available.
Specifications
| Model | WBM-CW-1000F8 |
| Weighing Range | 10-1000g |
| Weighing Accuracy | ±1g~±3g |
| Product Length | ≤300 mm |
| Product Width | ≤210 mm |
| Control System | High speed A/D Controller |
| Max. Speed/Min | 150 pcs/min |
| Operation Panel | 7-inch touch screen |
| Typical Power | 1KW |
| Power Supply | AC220V/110V ±10% 50Hz(60Hz) |
| Machine Dimension | 3350(L)*930(W)*1489(H)mm |
| Reject Device | Swing Arms |
| Working Condition | Temperature: 0℃~40℃ Humidity: 30%~95% |
Technical data not for final confirmation, there may be variations depend on your special product requirements
Related products
-

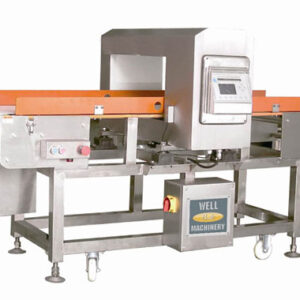

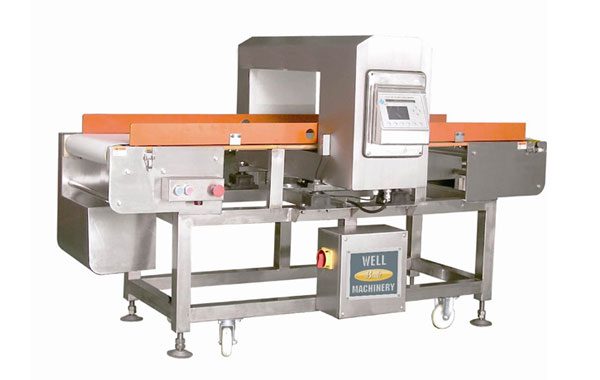

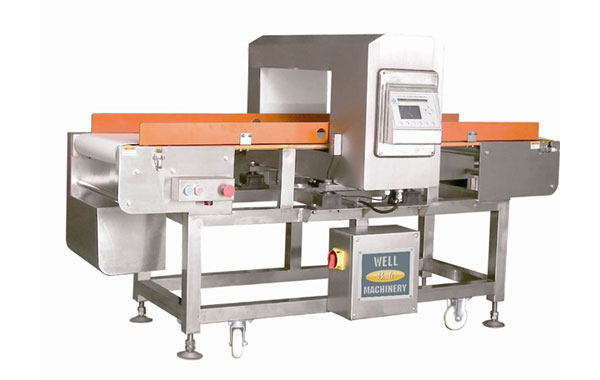

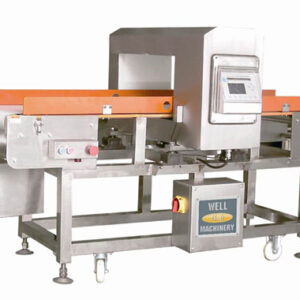

HORIZONTAL METAL DETECTOR WBM-400-80Read more
HORIZONTAL METAL DETECTOR WBM-400-80
Application profile
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal(Fe), non-ferrous metals (Copper, Aluminum etc.) and stainless steelFeatures:
1.Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability, without products suppression function and machine aging caused by time and temperature
2.Fast learn product character automatically and finish Auto-setting process
3.Automatic rewind function, dispense with handing large products.
4.52 products can be restored in database
5.LCD, Chinese-English menu, easy operation
6, Dust and water proof, easy to be cleanedQuick View -
HORIZONTAL METAL DETECTOR WBM-400-150Read more
HORIZONTAL METAL DETECTOR WBM-400-150
Application profile
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal(Fe), non-ferrous metals (Copper, Aluminum etc.) and stainless steelFeatures:
1.Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability, without products suppression function and machine aging caused by time and temperature
2.Fast learn product character automatically and finish Auto-setting process
3.Automatic rewind function, dispense with handing large products.
4.52 products can be restored in database
5.LCD, Chinese-English menu, easy operation
6, Dust and water proof, easy to be cleanedQuick View -
HORIZONTAL METAL DETECTOR WBM-300-150Read more
HORIZONTAL METAL DETECTOR WBM-300-150
Application profile
Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal(Fe), non-ferrous metals (Copper, Aluminum etc.) and stainless steelFeatures:
1.Mature phase adjustment technology, avoiding shortcomings like no phase of LC analog circuit, low stability, without products suppression function and machine aging caused by time and temperature
2.Fast learn product character automatically and finish Auto-setting process
3.Automatic rewind function, dispense with handing large products.
4.52 products can be restored in database
5.LCD, Chinese-English menu, easy operation
6, Dust and water proof, easy to be cleanedQuick View -

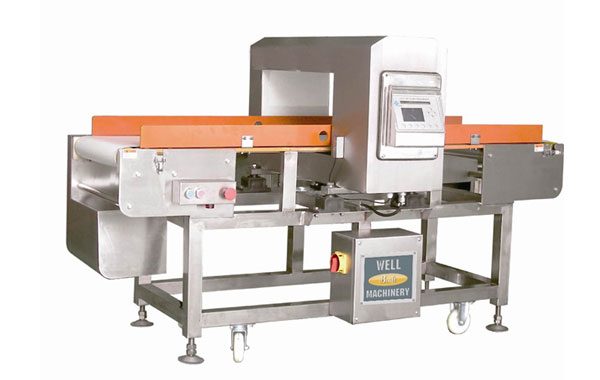

HORIZONTAL METAL DETECTOR WBM-300-180Read more
