Use to check the finished products with preset weight value.Widely used fields: electronic, pharmaceutical food and beverage,healthcare treatments, chemical, agriculture, and light industry. suitable for checking cosmetics, powder detergents, dental care (tooth paste, mouth wash), other chemical products (shoe cream, floor wax, deodorant, insect repellants).
Main Features:
- Producing Data Sorting Function: Producing data can be saved as Excel,1-year Data Save;
- Interface design: Foreseen interface makes data management easier, canrelate to internet and PC;
- Centralize Control: PC or HMI control multiple check weigher.
- Original program can be restored.
Description
Special Features:
- Standard machine structure and HMI program design can suitable for wide range products;
- Various preset program, easy to change to fit different product;
- Easy panel operation with smart and humanization HMI interface;
- Simple maintenance, easy installation and cleaning;
- Speed adjustable by variable frequency motor;
- High speed and accuracy, by equipped with high accuracy digital load cell;
- Zero tracking; Zero by manual or automatic, dynamic zero tracking available.
Specifications
| Model | WBM-CW-300 |
| Weighing Range | ≤3000g |
| Weighing Accuracy | ±0.5g~±2g |
| Product Length | ≤300 mm |
| Product Width | ≤300 mm |
| Control System | High speed A/D Controller |
| Max. Speed/Min | 80 pcs/min |
| Operation Panel | 7-inch touch screen |
| Typical Power | 0.4KW |
| Power Supply | AC220V/110V ±10% 50Hz(60Hz) |
| Machine Dimension | 1700mm(L)*878mm(W)*1385mm(H) |
| Eliminate optional device | Swing Arm, Pusher |
| Working Condition | Temperature: 0℃~40℃ Humidity: 30%~95% |
Technical data not for final confirmation, there may be variations depend on your special product requirements.
Related products
-

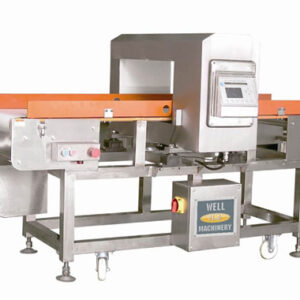

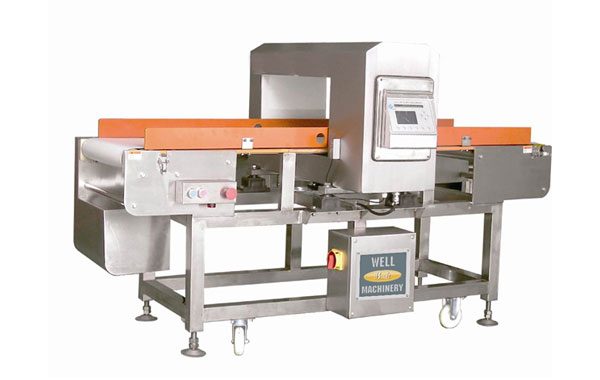

HORIZONTAL METAL DETECTOR WBM-400-120Read more
