Application profile
The first digital gravity fall metal detector in china, suitable for powder, granule or other forms of products.
Features:
- Compact design, small occupied space.
- Rapid rejecting mechanism, to reduce the waste of the materials.
- In line with the GMP requirements, easy to install and clean.
- Circuit design is more stable than traditional analog machine and a higher sensitivity.
- Special design of the mechanical structure, to effectively avoid the external interference like vibration, noise, product effect, etc.
Description
Technical Specifications
| MODEL | WBM-GF200-W/REJ | ||||
| Detection Diameter(mm) | 200 | ||||
| Detection Capacity t/h² | 3 | ||||
| Detection Sensitivity(mm) | Fe | 1.5 | |||
| SUS | 2.0 | ||||
| Alarm Mode | Automatic Flap RejectRequirements | 0.5Mpa≥ | |||
| Power Supply | AC220V(Optional) | ||||
| Main Material | Stainless Steel(SUS304) | ||||
Note:
1.The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected per the products being detected, working condition and the different positions the metal mixed with.
2.Detecting capacity per hour is related with product weight, the value of the table is per the density of water(1000kg/m³).
3.Requirements for different sizes by customers can be fulfilled.
Related products
-
WBM-CW-210F8 Multiweight- Check WeigherRead more
WBM-CW-210F8 Multiweight- Check Weigher
Full waterproof structure:
1.Waterproof motor;
2.Waterproof axis;
3.Entire stainless steel waterproof structure;Statistics Program Function:
The record of checking quantity and weight of each sorting outlet can be saved automatically.Communication Function:
Preserve standard connector ,it can be connected with other intelligent equipment.Quick View -
WBM-CW-210Read more
WBM-CW-210
Use to check the finished products are qualified with preset weight. Widely used in many fields like electronic, pharmacy, food, beverage, health treatments, daily use chemical, agriculture, and light industry etc.
Main Features:- Producing Data Sorting Function: Producing data can be saved as Excel, 1 year data save.
- Interface Design: Foreseen interface makes data management easier, can be connected with internet and PC.
- Centralized Control: One PC or one HMI control multiple check weigher.
- Original program can be restored.
Quick View -
WBM-400-160 X-RAY inspection SystemRead more

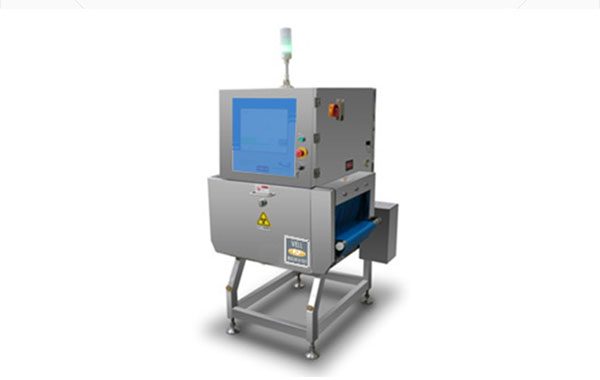

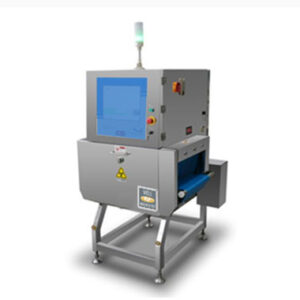

WBM-400-160 X-RAY inspection System
